BOSCH REXROTH

2-way pressure reducing valves, direct operated

KRD (High Performance)

Size 2 Component series B Maximum operating pressure 400 bar Maximum flow 25 l/min

Pressure relief valve, pilot controlled

L–DB

Size 40 … 300 Component series 3X Maximum operating pressure 25 bar Maximum flow 50000 l/min

Pump safety block

DBAEA...2X

Size 16 … 32 Component series 2X Maximum operating pressure 350 bar Maximum flow 400 l/min

Pump safety block

DBAEE...2X

Size 16 … 32 Component series 2X Maximum operating pressure 350 bar Maximum flow 400 l/min

Pump safety block

DBAE...2X

Size 16 … 32 Component series 2X Maximum operating pressure 350 bar Maximum flow 400 l/min

Pump safety block

DBAW...2X

DBAW…2X Size 16 … 32 Component series 2X Maximum operating pressure 350 bar Maximum flow 400 l/min

Pump safety block

DBA...2X

Size 16 … 32 Component series 2X Maximum operating pressure 350 bar Maximum flow 400 l/min

Pump safety block

DBAW...1X

Size 32, 40 Component series 1X Maximum operating pressure 350 bar Maximum flow 650 l/min

Pump safety block

DBA…1X

Size 32, 40 Component series 1X Maximum operating pressure 350 bar Maximum flow 650 l/min

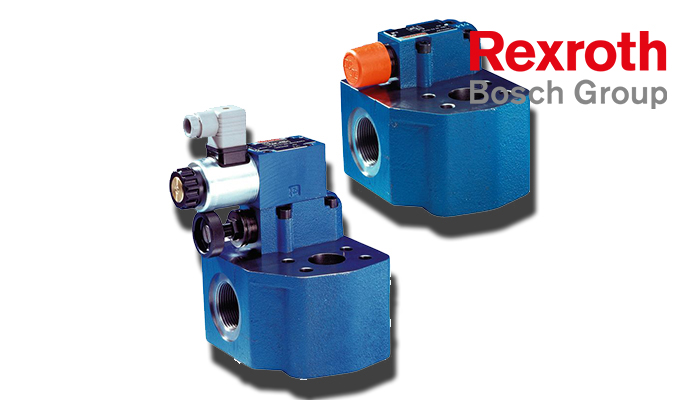

Pressure relief valve, pilot controlled

DBW52

Size 52 Component series 3X Maximum operating pressure 315 bar Maximum flow 2000 l/min

Pressure relief valve, pilot controlled

DB52

Size 52 Component series 3X Maximum operating pressure 315 bar Maximum flow 2000 l/min

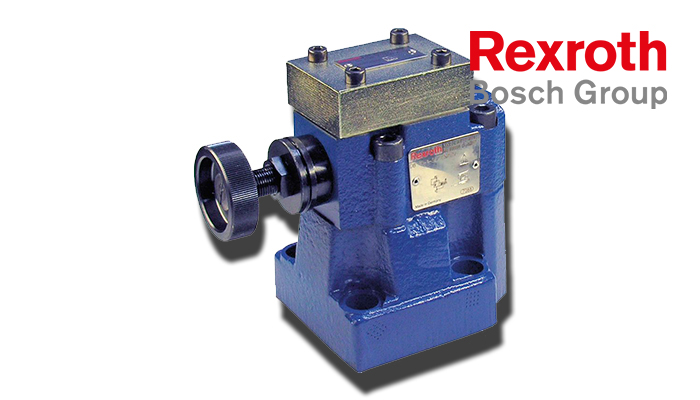

Pressure relief valve, pilot controlled

DBW…W65

Size 10 … 25 Component series 4X Maximum operating pressure 350 bar Maximum flow 300 l/min

Pressure relief valve, pilot controlled

DB...W65

Size 10 … 25 Component series 4X Maximum operating pressure 350 bar Maximum flow 400 l/min

Pressure relief valve, pilot controlled

DB...XC

Size 10 … 32 Component series 5X Maximum operating pressure 350 bar Area of application in accordance with the Explosion Protection Directive 2014/34/EU: I M2, II 2G, II 2D Types of protection of the valve: c (EN 13463-5)

Pressure relief valve, pilot controlled

DBW(C/T)

Size 10 … 32 Component series 5X Maximum operating pressure 350 bar Maximum flow 650 l/min

Pressure relief valve, pilot controlled

DB(C/T)

Size 10 … 32 Component series 5X Maximum operating pressure 350 bar Maximum flow 650 l/min

Pressure relief valve, pilot controlled

DB20K

Size 25 Component series 1X Maximum operating pressure 350 bar Maximum flow 300 l/min

Pressure relief valve, pilot controlled

DB.K

Size 10, 6 Component series 4X Maximum operating pressure 315 bar Maximum flow (NG6) 60 l/min Maximum flow (NG10) 100 l/min

Pressure relief valve, pilot controlled

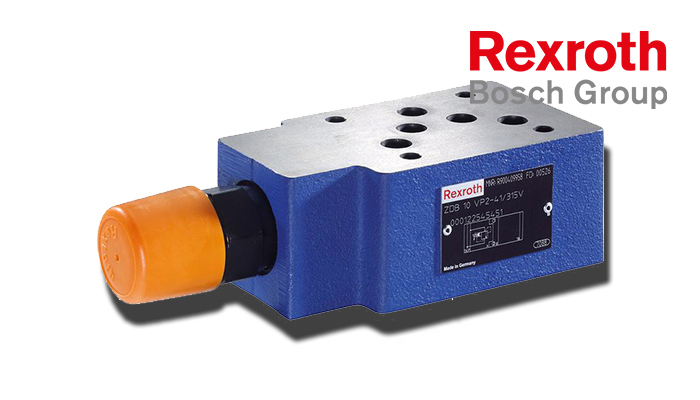

ZDB 10, Z2DB 10

Size 10 Component series 4X Maximum operating pressure 315 bar Maximum flow 100 l/min

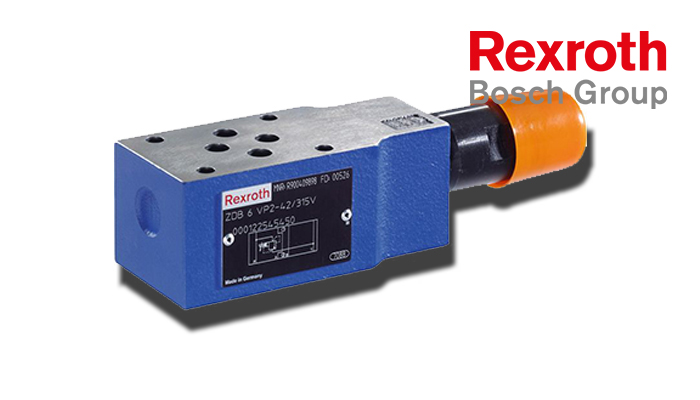

Pressure relief valve, pilot controlled

ZDB 6, Z2DB 6

Size 6 Component series 4X Maximum operating pressure 315 bar Maximum flow 60 l/min

Pressure relief valve, direct controlled

ZDB10D, Z2DB10D

Size 10 Component series 2X Maximum operating pressure 350 bar Maximum flow 120 l/min

Pressure relief valve, direct controlled

ZDB6D, Z2DB6D

Size 6 Component series 2X Maximum operating pressure 350 bar Maximum flow 60 l/min

Pressure relief valve (pilot control valve)

(Z)DBT/DZT

Size 6 Component series 1X Maximum operating pressure 350 bar Maximum flow 3 l/min

Safety valves, direct operated

DBDH…XC…E

Size 6 … 30 Component series 1X Area of application in accordance with the Explosion Protection Directive 2014/34/EU: I M2, II 2G, II 2D Types of protection of the valve solenoids: c (EN 13463-5)

Pressure relief valve, direct controlled

DB6D

Size 6 … 30 Component series 1X Maximum operating pressure 630 bar

Pressure relief valve, direct controlled

DB6D

Size 6 Component series 1X Maximum operating pressure 315 bar Maximum flow 60 l/min

Pressure relief valve, direct controlled

DBD.4K…SO156

Size 4 Component series 1X Maximum operating pressure 420 bar Maximum flow 20 l/min

Pressure relief valve, direct controlled

DBD.4K

Size 2 Component series 1X Maximum operating pressure 500 bar Maximum flow 20 l/min

Pressure relief valve, direct controlled

DBD.2K

Size 2 Component series 2X Maximum operating pressure 420 bar Maximum flow 2 l/min

Directional spool valves, pilot operated, with electro-hydraulic actuation

LS 1376

Size 62 Component series 1X Maximum operating pressure 250 bar Maximum flow 1500 l/min

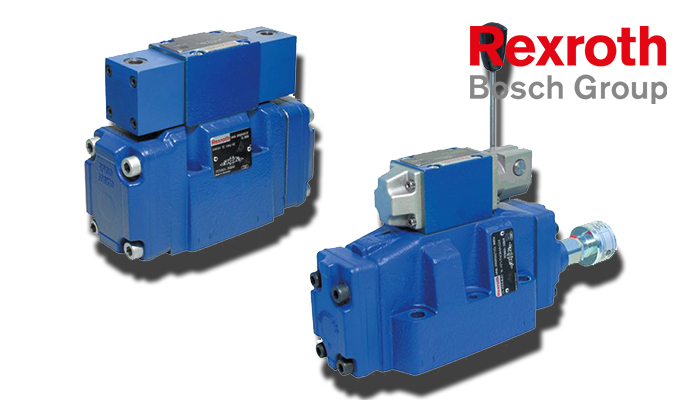

Directional spool valves, pilot operated, with mechanical-hydraulic actuation (rotary knob, lockable)

H-.WMDAH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 350 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with mechanical-hydraulic actuation (rotary knob, lockable)

WMDAH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 280 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with mechanical-hydraulic actuation (rotary knob)

H-.WMDH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 350 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with mechanical-hydraulic actuation (rotary knob)

WMDH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 280 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with mechanical-hydraulic actuation (roller plunger, rotated 90°)

H-.WMUH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 350 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with mechanical-hydraulic actuation (roller plunger, rotated 90°)

WMUH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 280 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with mechanical-hydraulic actuation (roller plunger)

H-.WMRH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 350 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with mechanical-hydraulic actuation (roller plunger)

WMRH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 280 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with mechanical-hydraulic actuation (hand lever)

H-.WMMH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 350 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with mechanical-hydraulic actuation (hand lever)

WMMH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 280 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with pneumatic-hydraulic actuation

H-.WPH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 350 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with pneumatic-hydraulic actuation

WPH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 280 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with hydraulic-hydraulic actuation

H-.WHH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 350 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with hydraulic-hydraulic actuation

WHH

Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32 Component series 4X, 7X, 6X Maximum operating pressure 280 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with hydraulic actuation

H-4WEH...VP1

Size 10 … 32 Component series 4X, 7X, 6X Maximum operating pressure 350 bar Maximum flow 1100 l/min Area of application according to – NEC500 and CEC Appendix J: Class I, Division 1, Groups B, C, D T4 – NEC502 and CEC Section 18: Class II/III, Division 1, Groups E, F, G T4 Type of protection valve solenoid: XP (explosion-proof); DIP (dust ignition protection)

Directional spool valves, pilot operated, with electro-hydraulic actuation (Explosion protection “Increased safety”)

H-4WEH…XE…

Component series 4X, 7X, 6X Maximum operating pressure 350 bar Maximum flow 1100 l/min Area of application in accordance with the Explosion Protection Directive 2014/34/EU: II 2G Type of protection of the valve solenoids: Ex eb mb IIC T4 Gb according to EN 60079-7 / EN 60079-18

Directional spool valves, pilot operated, with electro-hydraulic actuation (Explosion protection “flameproof enclosure”)

H-4WEH…XD...

Size 10 … 32 Component series 4X, 7X, 6X Maximum operating pressure 350 bar Maximum flow 1100 l/min Area of application in accordance with the Explosion Protection Directive 2014/34/EU: I M2; II 2G Type of protection of the valve solenoids: Ex db I Mb / Ex db IIC T4 Gb according to EN 60079-0 / EN 60079-1

Directional spool valves, pilot operated, with electro-hydraulic actuation

H-WEH...=UR

Solenoid coil is an approved component with UR-marking according to UL 906 Size 10, 16, 25 (H-WEH22), 25 (H-WEH25), 32 Component series 4X, 7X, 7X, 6X, 6X Maximum operating pressure 350 bar Maximum flow 1100 l/min

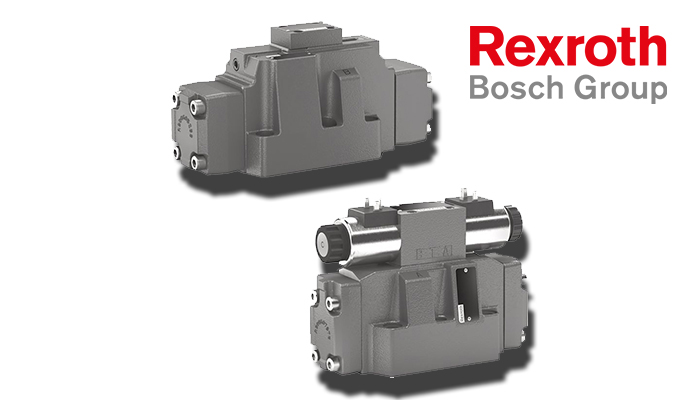

Directional spool valves, pilot operated, with electro-hydraulic actuation

H-WEH

Size 10, 16, 25 (H-WEH22), 25 (H-WEH25), 32 Component series 4X, 7X, 6X Maximum operating pressure 350 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with electro-hydraulic actuation

WEH...=UR

Solenoid coil is an approved component with UR-marking according to UL 906 Size 10, 16, 25 (WEH22), 25 (WEH25), 32 Component series 4X, 7X, 7X, 6X, 6X Maximum operating pressure 280 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with electro-hydraulic actuation

WEH

Size 10, 16, 25 (WEH22), 25 (WEH25), 32 Component series 4X, 7X, 6X Maximum operating pressure 280 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with hydraulic actuation

H-WH

Size 10, 16, 25 (H-WH22), 25 (H-WH25), 32 Component series 4X, 7X, 6X Maximum operating pressure 350 bar Maximum flow 1100 l/min

Directional spool valves, pilot operated, with hydraulic actuation

Size 10, 16, 25 (WH 22), 25 (WH 25), 32 Component series 4X, 7X, 6X Maximum operating pressure 280 bar Maximum flow 1100 l/min

Directional spool valves, direct operated, with hydraulic actuation

LS 1378

5/3 directional spool valve, direct operated, with solenoid actuation

VEDS-10A-53

Size 10 Component series 0 Maximum operating pressure 250 bar Maximum flow 25 l/min

4/3 directional spool valve, direct operated, with solenoid actuation

VEDS-10A-43

Size 10 Component series 0 Maximum operating pressure 350 bar Maximum flow 35 l/min

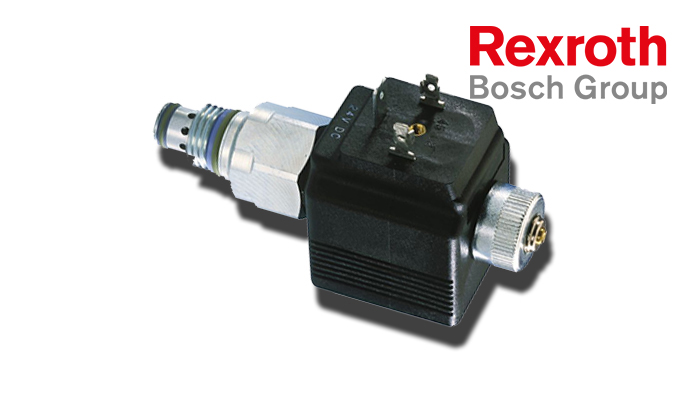

3/2 directional spool valve, direct operated with solenoid actuation

KKDER8 C/G/U (High Performance)

Size 8 Component series A Maximum operating pressure 350 bar Maximum flow 30 l/min

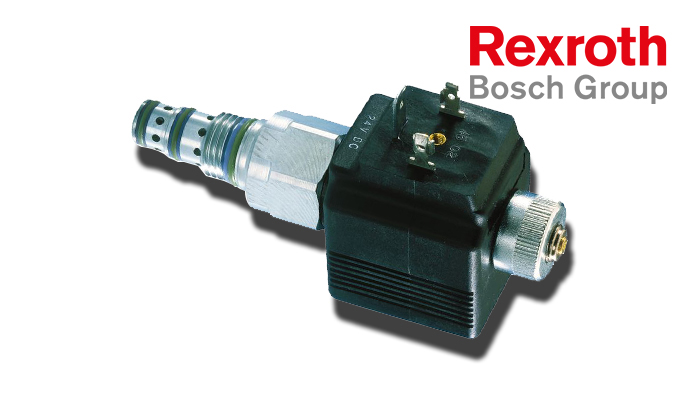

2/2 directional spool valve, direct operated with solenoid actuation

KKDER8 N/P (High Performance)

Size 8 Component series A Maximum operating pressure 350 bar Maximum flow 45 l/min

3/2 directional spool valve, direct operated with solenoid actuation

KKDEN8 C/G/U (standard performance)

Size 8 Component series A Maximum operating pressure 250 bar Maximum flow 20 l/min

2/2 directional spool valve, direct operated with solenoid actuation

KKDEN8 N/P (standard performance)

Size 8 Component series A Maximum operating pressure 250 bar Maximum flow 25 l/min
