BOSCH REXROTH

Meter-out check-Q-meter, sandwich plate design

SCA 32, SCB 32

Size 32 Component series 1X Maximum operating pressure 350 bar Maximum flow 700 l/min

Meter-out check-Q-meter, sandwich plate design

SCA 16, SCA 25

Size 16, 25 Component series 2X Maximum operating pressure 315 bar Maximum flow 325 l/min

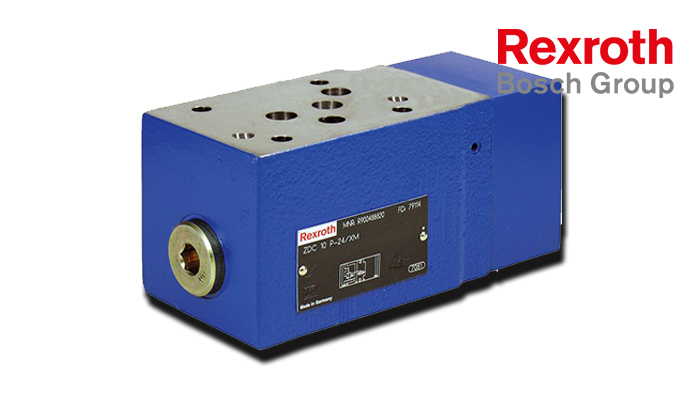

Meter-in pressure compensator, direct operated

ZDC 10...32

Size 10, 16, 25, 32 Component series 2X Maximum operating pressure 350 bar Maximum flow 520 l/min

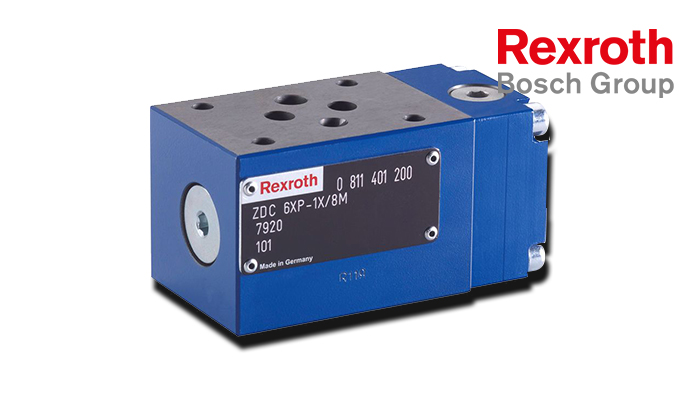

Meter-in pressure compensator, direct operated

ZDC 6

Size 6 Component series 1X Maximum operating pressure 250 bar Maximum flow 35 l/min

Directional servo-valves in 4-way variant

4WSE3E 32

Size 32 Component series 5X Maximum operating pressure 315 bar Maximum flow 1800 l/min

Directional servo-valves in 4-way variant

4WSE3E 25

Size 25 Component series 3X Maximum operating pressure 350 bar Maximum flow 1020 l/min

Directional servo-valves in 4-way variant

4WSE3E 16

Size 16 Component series 2X Maximum operating pressure 350 bar Maximum flow 570 l/min

Directional servo-valves in 4-way variant

4WS(E)2E. 16

Size 16 Component series 2X Maximum operating pressure 315 bar Maximum flow 320 l/min

Servo directional control valve of 3-way design

4WS2EM 10…VH1...-114

Nominal size 10 Component series 5X Maximum working pressure 315 bar Maximum flow rate 180 l/min For potentially explosive atmospheres Ranges of application in accordance with Article 505, NEC ® – IS Class I, Zone 0, AEx ia IIC T4 – NI Class I, Zone 2 – Ambient temperature range -20 °C ≤ Ta ≤ +60 °C

Servo directional control valve of 3-way design

4WS2EM 10…VH1...-104

Servo directional control valve of 4-way design

4WS2EM 10…VH1...-102

Servo directional control valve of 4-way design

4WS2EM 10…VH1...-100

Servo directional control valve of 4-way design

4WS2EM 10…VH1

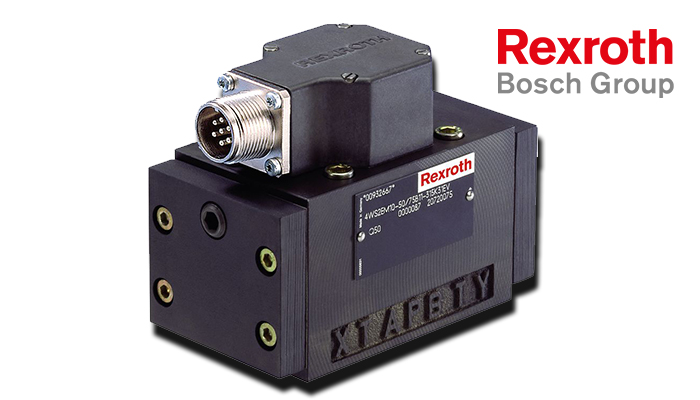

Directional servo-valves, with mechanical position feedback

4WS2EM 10…XN...-114

Size 10 Component series 5X Maximum operating pressure 315 bar Maximum flow 180 l/min Area of application in accordance with the Explosion Protection Directive 2014/34/EU: II 3G; II 3D Type of protection: – Ex nA II T5X according to EN 60079-0 / EN 60079-15 – Ex tD A22 IP 65 TX according to EN 61241-0 / EN 61241-1

Directional servo-valves, with mechanical position feedback

4WS2EM 10…XN...-102

Directional servo-valves, with mechanical position feedback

4WS2EM 10…XN...-100

Directional servo-valves, with mechanical position feedback

4WS2EM 10…XN

Directional servo-valves, with mechanical position feedback

4WS2EM 10…XH...-104

Size 10 Component series 5X Maximum operating pressure 315 bar Maximum flow 180 l/min Area of application in accordance with the Explosion Protection Directive 2014/34/EU: II 1G Type of protection: Ex ia IIC T4 Ga according to EN 60079-0 / EN 60079-11

Directional servo-valves, with mechanical position feedback

4WS2EM 10…XH...-102

Directional servo-valves, with mechanical position feedback

4WS2EM 10…XH...-100

Directional servo-valves, with mechanical position feedback

4WS2EM 10…XH

Directional servo-valves, with mechanical position feedback

4WS2EM 10…XD...-100

Size 10 Component series 5X Maximum operating pressure 315 bar Maximum flow 180 l/min Area of application in accordance with the Explosion Protection Directive 2014/34/EU: II 2G Types of protection of the valve: Ex db IIB T4 Gb acc. to EN 60079-0 / EN 60079-1 and IEC 60079-0 / IEC 60079-1

Directional servo-valves, with mechanical position feedback

4WS2EM 10…XD

Size 10 Component series 5X Maximum operating pressure 315 bar Maximum flow 180 l/min Area of application in accordance with the Explosion Protection Directive 2014/34/EU: II 2G Type of protection of the valve: Ex db IIC T4 Gb according to EN 60079-0 / EN 60079-1 and IEC 60079-0 / IEC 60079-1

Directional servo-valves in 4-way variant

4WS.2E...

Size 10 Component series 5X Maximum operating pressure 315 bar Maximum flow 180 l/min

Directional servo-valves, with mechanical position feedback

4WS2EM 6…XN-102

Size 6 Component series 2X Maximum operating pressure 315 bar Maximum flow 48 l/min Area of application in accordance with the Explosion Protection Directive 2014/34/EU: II 3G; II 3D Type of protection: – Ex nA II T5X according to EN 60079-0 / EN 60079-15 – Ex tD A22 IP 65 TX according to EN 61241-0 / EN 61241-1

Directional servo-valves, with mechanical position feedback

4WS2EM 6…XN-100

Directional servo-valves, with mechanical position feedback

4WS2EM 6…XN

Directional servo-valves in 4-way variant

4WS.2E...

Size 6 Component series 2X Maximum operating pressure 315 bar Maximum flow 48 l/min

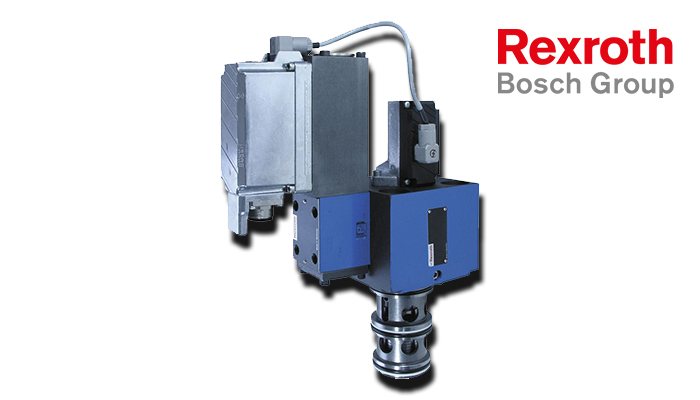

3-way high-response cartridge valves

3WRCE...-2X/S

Size 32 … 50 Component series 2X Maximum operating pressure 420 bar Maximum flow 2200 l/min

3-way high-response cartridge valves

3WRC(E)...-1X/S

Size 63 … 100 Component series 1X Maximum operating pressure 315 bar Maximum flow 8500 l/min

2-way high-response cartridge valves

2WRCE...-2X/S

Size 32 … 50 Component series 2X Maximum operating pressure 420 bar Maximum flow 4500 l/min

2-way high-response cartridge valves

2WRC(E)...-1X/S

Size 63 … 160 Component series 1X Maximum operating pressure 420 bar

3-way high-response cartridge valves

3WRCE...-2X/P

Size 32 … 50 Component series 2X Maximum operating pressure 315 bar Maximum flow 2200 l/min

2-way high-response cartridge valves

2WRCE...-2X/P

Size 32 … 50 Component series 2X Maximum operating pressure 420 bar Maximum flow 4500 l/min

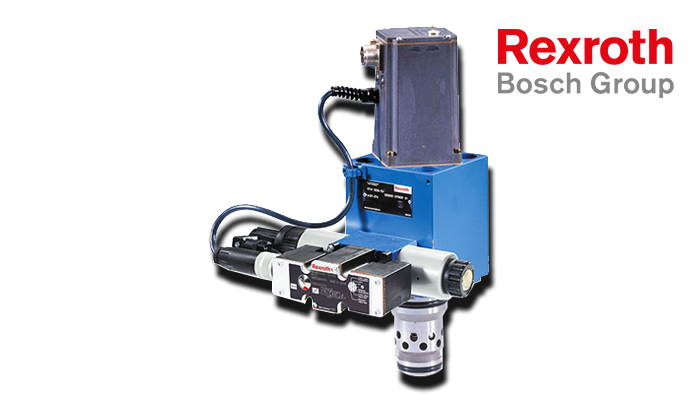

Directional high-response cartridge valve, pilot-operated, with integrated electronics and analog or field bus interface

2WRCE; 2WRCF

Size 32 … 50 Component series 4X Maximum operating pressure 420 bar Maximum flow 6400 l/min Nominal flow 850 … 2700 l/min

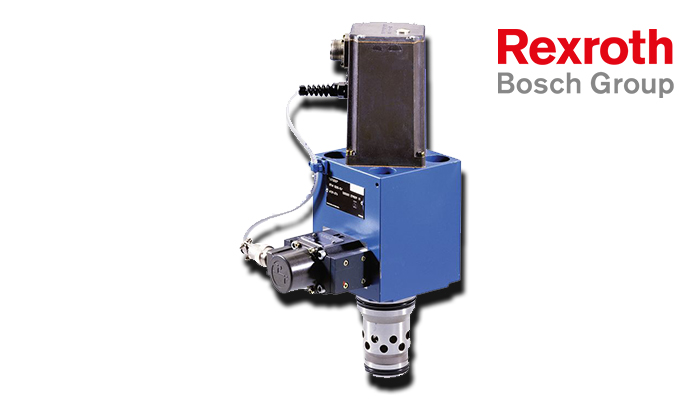

3/3 high-response directional valve (cartridge valve) with integrated control electronics

3WRCBEE

Size 25 … 50 Component series 1X Maximum operating pressure 315 bar Maximum flow 2250 l/min Nominal flow 190 … 750 l/min

3/3 directional high-response valves, pilot-operated, with inductive position transducer

3WRCBH

Size 25 … 50 Component series 1X Maximum operating pressure 315 bar Maximum flow 2250 l/min Nominal flow 65 … 750 l/min

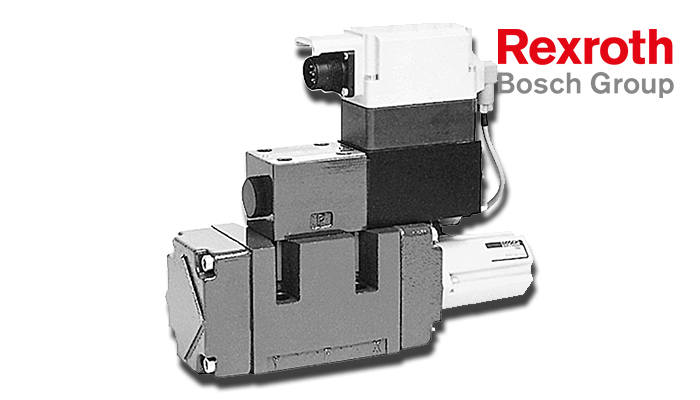

High-response directional valves, pilot operated, with electrical position

4WRD...XN

Size 10 … 35 Component series 5X Maximum operating pressure 350 bar Maximum flow 3000 l/min Nominal flow 25 … 1000 l/min Application according to Explosion Protection Directive 2014/34/EU II3G: type of protection • Ex nA II T5X without directional sandwich plate valve • Ex nA II T3X with directional sandwich plate valve according to EN 60079-0 / EN 60079-15

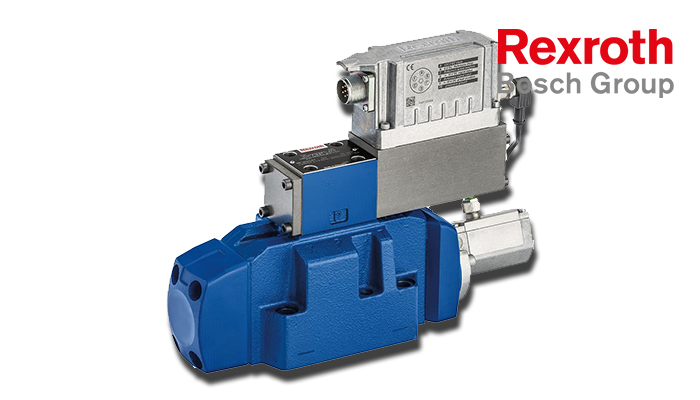

High-response directional valves, pilot operated, with integral electronics (OBE) and electrical position feedback

4WRDE -6X

Size 10 … 16 Component series 6X Maximum operating pressure 350 bar Maximum flow 460 l/min Nominal flow 25 … 200 l/min

High-response directional valves, pilot operated, with integral electronics (OBE) and electrical position feedback

4WRDE -5X

Size 10 … 35 Component series 5X Maximum operating pressure 350 bar Maximum flow 3000 l/min Nominal flow 25 … 1000 l/min

High-response directional valves, pilot operated, with electrical position feedback and integrated electronics (OBE)

4WRTE

Size 10 … 35 Component series 4X Maximum operating pressure 350 bar Maximum flow 3000 l/min Nominal flow 25 … 1000 l/min

High-response directional valves, pilot operated, with electrical position feedback and integrated electronics (OBE)

4WRGE

Size 10 … 25 Component series 1X Maximum operating pressure 350 bar Maximum flow 870 l/min Nominal flow 50 … 350 l/min

High-response directional valves, pilot operated, with electrical position feedback and integrated electronics (OBE)

4WRVE

Size 10 … 27 Component series 2X Maximum operating pressure 350 bar Maximum flow 1000 l/min Nominal flow 40 … 430 l/min

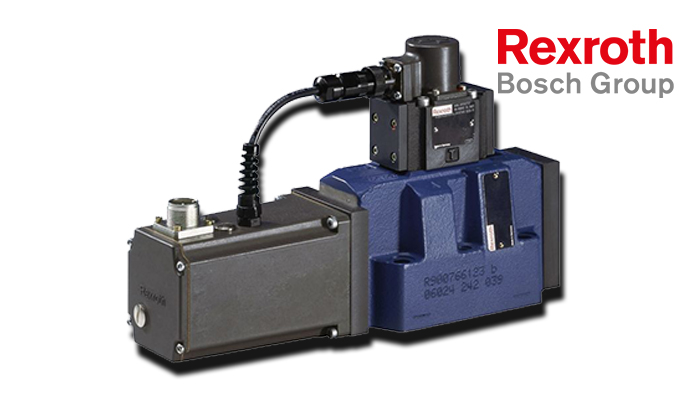

High-response directional valves, pilot operated, with electrical position feedback and integrated electronics (OBE)

4WRLE

Size 10 … 35 Component series 4X Maximum operating pressure 350 bar Maximum flow 4700 l/min Nominal flow 60 … 1500 l/min

High-response directional valve, pilot operated, with integrated digital axis controller (IAC Multi Ethernet)

4WRLD -4X

Size 10 … 35 Component series 4X Maximum operating pressure 350 bar Maximum flow 4700 l/min Nominal flow 60 … 1500 l/min

4/3 high-response directional valves, pilot operated, with electrical position feedback (Lvdt DC/DC ±10V)

4WRL.E(W)

Size 10 … 35 Component series 3X Maximum operating pressure 350 bar Maximum flow 3000 l/min Nominal flow 80 … 1100 l/min

4/3 high-response directional valves, pilot operated, with electrical position feedback (Lvdt DC/DC ±10V)

4WRL.V

Size 10 … 35 Component series 3X Maximum operating pressure 350 bar Maximum flow 3500 l/min Nominal flow 55 … 1000 l/min

4/3 high-response directional valves with electrical position feedback (Lvdt DC/DC) (design: Ruggedized)

4WRL...-750

Size 10 … 25 Component series 3X Maximum operating pressure 350 bar Maximum flow 900 l/min Nominal flow 40 … 370 l/min

4/3 high-response directional valves, direct operated, with electrical position feedback and integrated electronics (OBE)

4WRSEH

Size 6, 10 Component series 3X Maximum operating pressure 315 bar Maximum flow 180 l/min Nominal flow 4 … 100 l/min

4/3 high-response directional valve, direct operated, with integrated control electronics (OBE)

4WRSE

Size 6, 10 Component series 3X Maximum operating pressure 315 bar Maximum flow 180 l/min Nominal flow 4 … 75 l/min

High-response valve with integrated digital axis controller (IAC-R) and clock-synchronized PROFIBUS DP/V2 (PROFIdrive profile)

4WRPNH../24F..

Size 6, 10 Component series 2X Maximum operating pressure 315 bar Maximum flow 100 l/min

High-response valve with integrated digital axis controller (IAC-R) and field bus interface

4WRPNH../24C/P

Size 6, 10 Component series 2X Maximum operating pressure 315 bar Maximum flow 100 l/min

High-response directional valve, direct operated, with integrated digital axis controller (IAC Multi Ethernet)

4WRPDH

Size 6, 10 Component series 2X Maximum operating pressure 350 bar Maximum flow 100 l/min

4/4 directional control valves, direct operated, with electrical position feedback and integrated electronics (OBE)

4WRPEH 10

Size 10 Component series 2X Maximum operating pressure 315 bar Nominal flow 50 … 100 l/min

High-response directional valves, direct operated, with electrical position feedback and integrated electronics (OBE)

4WRPEH 6 -3X

Size 6 Component series 3X Maximum operating pressure 350 bar Nominal flow 4 … 40 l/min

High-response directional valves, direct operated, with electrical position feedback and integrated electronics (OBE)

4WRPEH 6 -2X

Size 6 Component series 2X Maximum operating pressure 315 bar Nominal flow 2 … 40 l/min

High-response valves with electrical position feedback (Lvdt DC/DC) (design: Ruggedized)

4WRPH..2X..-750

Size 6, 10 Component series 2X Maximum operating pressure 315 bar Maximum flow 100 l/min Nominal flow 12 … 100 l/min

High-response valves with electrical position feedback (Lvdt DC/DC ±10 V)

4WRPH 10

Size 10 Component series 2X Maximum operating pressure 315 bar Maximum flow 100 l/min Nominal flow 50 … 100 l/min

Directional control valves, direct operated, without electrical position feedback

4WRPH 6 ...-855

High-response valves with electrical position feedback (Lvdt DC/DC ±10 V)

4WRPH 6

Size 6 Component series 2X Maximum operating pressure 315 bar Maximum flow 40 l/min Nominal flow 2 … 40 l/min
