Axial piston pumps

Hydraulic tank

TMP / TMS

For hydrostatic fan drives in buses Steel or polymer versions Total volume 8 liters Flow rate up to 90 l/min

Power valve

For the power limiting of variable pumps with hydraulic proportional control Size 6 Nominal pressure 350 bar Maximum pressure 400 bar 2-spring-power controller

Flushing valve with pressure holding valve

For flushing out hydraulic fluid and dirt particles from the closed circuit Size 40 … 90 Nominal pressure 400 bar Maximum pressure 450 bar Closed circuit

Pressure and flow control system

SYHDFEn-1X

Version with axial piston variable displacement pump A4VSO Size 40 … 355 Maximum operating pressure 350 bar Function: Swivel angle control, Pressure control, Torque limitation, Master-Slave, Variable-speed Communication: Analog, CANopen, parameterizable

Pressure and flow control system

SYHDFED-1X

Version with axial piston variable displacement pump A4VSO Size 40 … 355 Maximum operating pressure 350 bar Function: Swivel angle control, Pressure control,Torque limitation, Master-Slave Communication: Sercos, PROFINET, EtherCAT, EtherNET/IP, POWERLINK, VARAN, analog

Pressure and flow control system

SYHDFEC-1X

Version with axial piston variable displacement pump A4VSO Size 40 … 355 Maximum operating pressure 350 bar Function: Swivel angle control, Pressure control,Torque limitation, Master-Slave Communication: Analog, CANopen, parameterizable

Pressure and flow control system

SYHDFEE-1X

Version with axial piston variable displacement pump A4VSO Size 40 … 355 Maximum operating pressure 350 bar Function: Swivel angle control, Pressure control,Torque limitation, Master-Slave Communication: Analog, configurable

Pressure and flow control system

HS5E

Available for A4VSO, A4VBO, A4VSG and A4CSG Electrohydraulic control systems with on-board electronics For the electrohydraulic control of pressure, flow and power Optional conversion of HS3 and HS4 to HS5E

Secondary control for closed circuit

DS2

Available for A4VSG Highly dynamic rotary drive for closed circuit Motor and generator operation for both directions of rotation With energy recovery and energy storage With closed loop rotational speed, position, or torque control for high control performance and dynamics

Secondary control for open circuit

DS2

Available for A4VSO Highly dynamic rotary drive for open circuit Motor and generator operation for both directions of rotation With energy recovery and energy storage With closed loop rotational speed, position, or torque control for high control performance and dynamics

Electronic pressure and flow control

DFE1

Available for A4VSO and A4VBO For the electrohydraulic control of pressure, flow and power For the electrohydraulic control of pressure, flow and power Rapid decompression via pump by flow direction change as standard Rotary group optimized for long standby operating times

Electrohydraulic control systems

HSx, HMx, EOx

Available for A4VSO, A4VBO, A4VSG and A4CSG Electrohydraulic control with servo, proportional and control valve Digital electrohydraulic control systems with amplifier Control of swivel angle, pressure and power (HS5P) Usable as a special version in mooring operation (overcenter)

Electrohydraulic control with proportional solenoid

Available for A4VSG and A4CSG Electro-proportional control by a current signal High control accuracy Resets to neutral position in the event of a signal failure With manual override

Pilot-pressure related proportional control

Available for A4VSO, A4VSG and A4CSG Control is pilot-pressure related Different pilot-pressure ranges available Power control, pressure control and electrical pilot pressure supply optional Standard spring-centering of the stroking cylinder

Power controller

LR2, LR3, LR2N, LR3N

Available for A4VSO and A4VBO Precise control in accordance with the hyperbolic characteristic curve, provides an optimum utilization of available power The beginning of control is mechanically adjustable Additional functions in the modular system for pressure control, fixed setting and remotely controllable, flow control, hydraulic or mechanical stroke limiter

Pressure and flow controller

DR, DP, FR, DFR

Available for A4VSO and A4VSG Pressure and flow control Remote controlled optional Pressure controller for parallel operation optional Mechanical Vg min and Vg max limitation

Axial piston variable pump

A10VZG series 10

Suitable for variable-speed operation with synchronous and asynchronous motors Size 10 … 63 Closed circuit

Axial piston variable pump

AA4CSG series 30

Robust high pressure pump with integrated boost pump Size 250 … 355 Nominal pressure 350 bar Maximum pressure 400 bar Closed circuit SAE version (for the US market)

Axial piston variable pump

A4CSG series 30

Robust high pressure pump with integrated boost pump Size 250 … 750 Nominal pressure 350 bar Maximum pressure 400 bar Closed circuit Metric version

Axial piston variable pump

AA4VSG

Robust high pressure pump for industrial applications Size 40 … 355 Nominal pressure 350 bar Maximum pressure 400 bar Closed circuit SAE version (for the US market)

Axial piston variable pump

A4VSG

Robust high pressure pump for industrial applications Size 40 … 1000 Nominal pressure 350 bar Maximum pressure 400 bar Closed circuit Metric version

Metering pump for polyurethane components

A7VK series 10

Axial piston variable pump Size 12 … 107 Nominal pressure 250 bar Maximum pressure 315 bar Open and closed design

Axial piston variable pump

A15VSO series 1x

All-purpose high pressure pump with through drive Size 110 … 280 Nominal pressure 350 bar Maximum pressure 420 bar Open circuit

Axial piston variable pump

A10VZO series 10

Suitable for variable-speed operation with synchronous and asynchronous motors Size 45 … 180 Nominal pressure 280 bar Maximum pressure up 350 bar Open circuit

Axial piston variable pump

A10VSO series 32

Optimized medium pressure pump for high power machines Size 45 … 180 Nominal pressure 280 bar Maximum pressure 350 bar Open circuit

Axial piston variable pump

AA10VSO series 31

All-purpose medium pressure pump Size 18 … 140 Nominal pressure 280 bar Maximum pressure 350 bar Open circuit SAE version (for the US market)

Axial piston variable pump

A10VSO series 31

All-purpose medium pressure pump Size 18 … 140 Nominal pressure 280 bar Maximum pressure 350 bar Open circuit Metric version

Axial piston variable pump

A10VO series 5x

For machines with medium pressure requirements Size 10 … 100 Nominal pressure 250 bar Maximum pressure 315 bar Open circuit

Axial piston variable pump

A7VO series 63

Robust high pressure pump for universal use Size 28 … 500 Nominal pressure 350 bar Maximum pressure 400 bar Open circuit

Axial piston variable pump

AA4VSO

Robust high pressure pump for industrial applications Size 40 … 355 Nominal pressure 350 bar Maximum pressure 400 bar Open circuit SAE version (for the US market)

Axial piston variable pump

A4VSO

Robust high pressure pump for industrial applications Size 40 … 1000 Nominal pressure 350 bar Maximum pressure 400 bar Open circuit Metric version

Axial piston variable pump

A4VBO

Optimized high pressure pump for maximal power requirements up to 500 bar Size 71 … 450 Nominal pressure 450 bar Maximum pressure 500 bar Open circuit

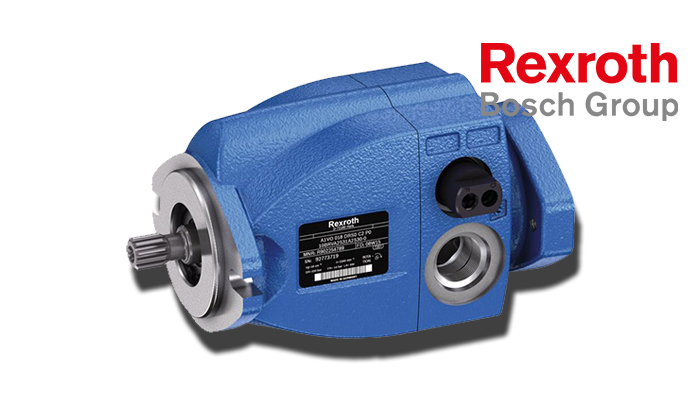

Axial piston variable pump

A1VO series 10

For load-sensing systems in smaller mobile machines Size 18 … 35 Nominal pressure 250 bar Maximum pressure 280 bar Open circuit

Axial piston fixed pump

A10FZG series 10

Suitable for variable-speed operation with synchronous and asynchronous motors Size 6 … 63 Nominal pressure 315 bar Maximum pressure 350 bar Closed circuit

Axial piston fixed pump

A10FZO series 10

Suitable for variable-speed operation with synchronous and asynchronous motors Size 6 … 63 Nominal pressure 315 bar Maximum pressure 350 bar Open circuit

Axial piston fixed pump

A4FO

All-purpose high pressure pump with through drive Size 22 … 500 Nominal pressure up to 400 bar Maximum pressure up 450 bar Open circuit

Axial piston fixed pump

AA2FO series 6x

All-purpose high pressure pump Size 10 … 250 Nominal pressure up to 400 bar Maximum pressure up 450 bar Open circuit SAE version (for the US market)

Axial piston fixed pump

A2FO series 6x

All-purpose high pressure pump Size 5 … 1000 Nominal pressure up to 400 bar Maximum pressure up 450 bar Open circuit Metric version

Axial piston variable pump

A1VO series 10

For load-sensing systems in smaller mobile machines Size 18 … 35 Nominal pressure 250 bar Maximum pressure 280 bar Open circuit
